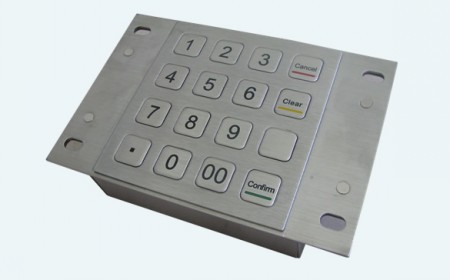

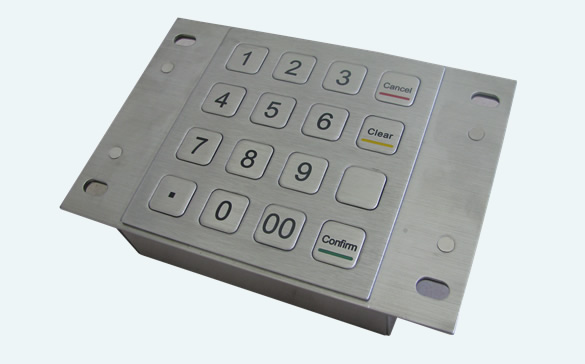

Model Number: KP901
  • Summary
  • Performance
  • Specifications
  • Image Gallery
  • Download



A IP65 vandal proof and water resistant metal keyboard for industrial application.



Stainless steel panel

INPUTEL keyboards are made of Quality A stainless steel, which makesure the keyboard can be used for very rugged conditions.


IP65 panel

All keyboards pass IP65 test and get approved.


Worldwide shipment

Normally 7days production time to make sure the customer can get the product in short time.





16Keys stainless steel keyboard



Vandal proof


Wide Temperature Range


Plug and Play


Long lifespan


Multi-languages layout









  • Numeric keypad
    Protection Level: IP65; NEMA4X
    Lifespan: > 5 years.
    Interface: RS232 and USB or PS2 available
    Supply Voltage: +5V DC +/-5%
    Operating temperature: -10C to +60C
    Storage temperature: -20C to +70C.
    Panel dimensions: 91.5mm x 87.5mm
    Dustproof, Water proof, Vandalism resistance
    Mounting type: Rear Mounting
    No. of keys: 16keys, high quality stainless steel
    Key switch Technology: Silicone switching element
    Key switch lifetime: > 5 million of operations.
    Actuation Force/travel: 1N/2.0mm
    Mounting Rack: Aluminum alloy
    Lettering: laser engraved legends for excellent durability
    G.W.: 0.6kg.
    All languages version are available on request.



  • ATM and Self service kiosk
    Industrial PC system
    Medical & Food industry
    Gaming machine & Vending Machine
    Navigation & aviation
    CNC machine and other factory equipmentt


 Warranty Information


  • 1-year Limted hardware warranty
  • CE,FCC,RoHs and IP65
