A IP65 vandal proof and water resistant metal keyboard for industrial application.

Stainless steel panel

INPUTEL keyboards are made of Quality A stainless steel, which makesure the keyboard can be used for very rugged conditions.

IP65 panel

All keyboards pass IP65 test and get approved.

Worldwide shipment

Normally 7days production time to make sure the customer can get the product in short time.

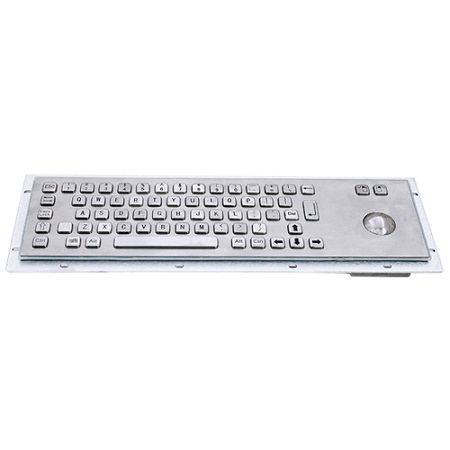

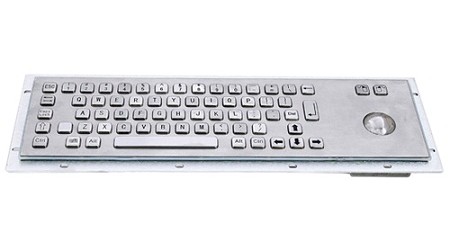

66Keys stainless steel keyboard with trackball

Water-resistant

.

Vandal proof

Wide Temperature Range

.

Plug and Play

Long lifespan

Multi-languages layout

Specifications

 Applications

• Protection Level: IP65; NEMA4X
  Lifespan: > 5 years.
  Interface: PS2, USB available.
  Supply Voltage: +5V DC +/-5%
  Operating temperature: -10C to +60C
  Storage temperature: -20C to +70C.
  Panel dimensions: 392mm x 110mm
  Dustproof, Water proof, Vandalism resistance
  Mounting type: Rear Mounting
  No. of keys: 66 keys, high quality stainless steel
  Track ball diameter: 38mm
  Key switch Technology: Silicone switching element
  Key switch lifetime: > 5 million of operations.
  Actuation Force/travel: 1N/2.0mm
  Mounting Rack: Aluminum alloy
  Lettering: laser engraved legends for excellent durability
  G.W.: 1.80kg.
  All languages version and interface are available on request.


• Self service kiosk
  Industrial PC system
  Medical & Food industry
  Gaming machine & Vending Machine
  Navigation & aviation
  CNC machine and other factory equipment


 Warranty Information

 Certificates

• 1-year Limted hardware warranty

• CE,FCC,RoHs and IP65

•
